Permanent magnet DC motor

Quick Details

  • Usage: Boat, Car, Electric Bicycle, Fan
  • Certification: CE, UL
  • Type: Micro Motor
  • Torque: 1.69Nm
  • Construction: Permanent Magnet
  • Commutation: Brush
  • Protect Feature: Totally Enclosed
  • Speed(RPM): 1700rpm
  • Continuous Current(A): 11.2A
  • Output Power: 300W
  • Voltage(V): 36V
  • G.W: 10.1KG

Specifications

permanent magnet dc motor
1)UL,CE
2)36v,300w,1700rpm,Dia:100mm.
3)High efficient,low noise

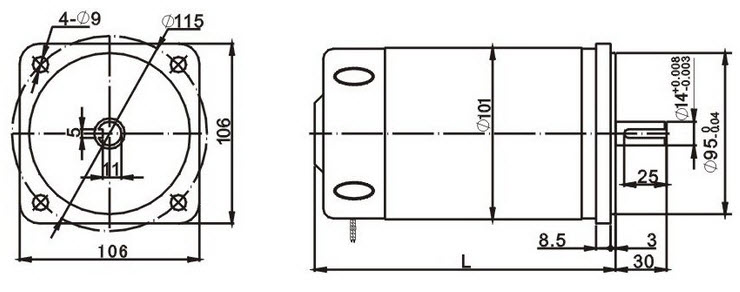

◊ Drawing

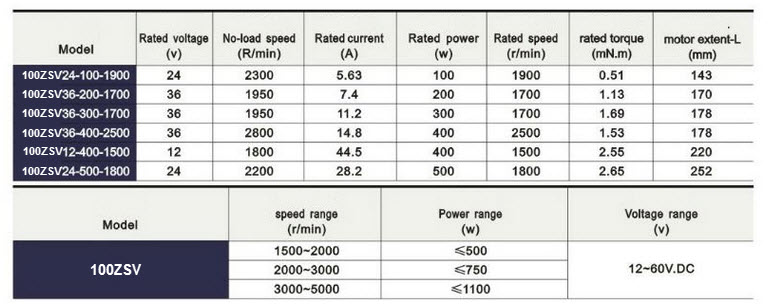

◊ Specification

◊ Model Description

100

ZSV

24

-

100

-

1900

1.

2.

3.



4.



5.


1.Body OD:100-fuselage outside diameter of 100mm

2.ZSV:ferrite permanent magnet DC motor

3.Voltage:24-24V.DC input

4.Power:100-rated output power of 100HP

5.Speed:1900-Rated speed 1900rpm
